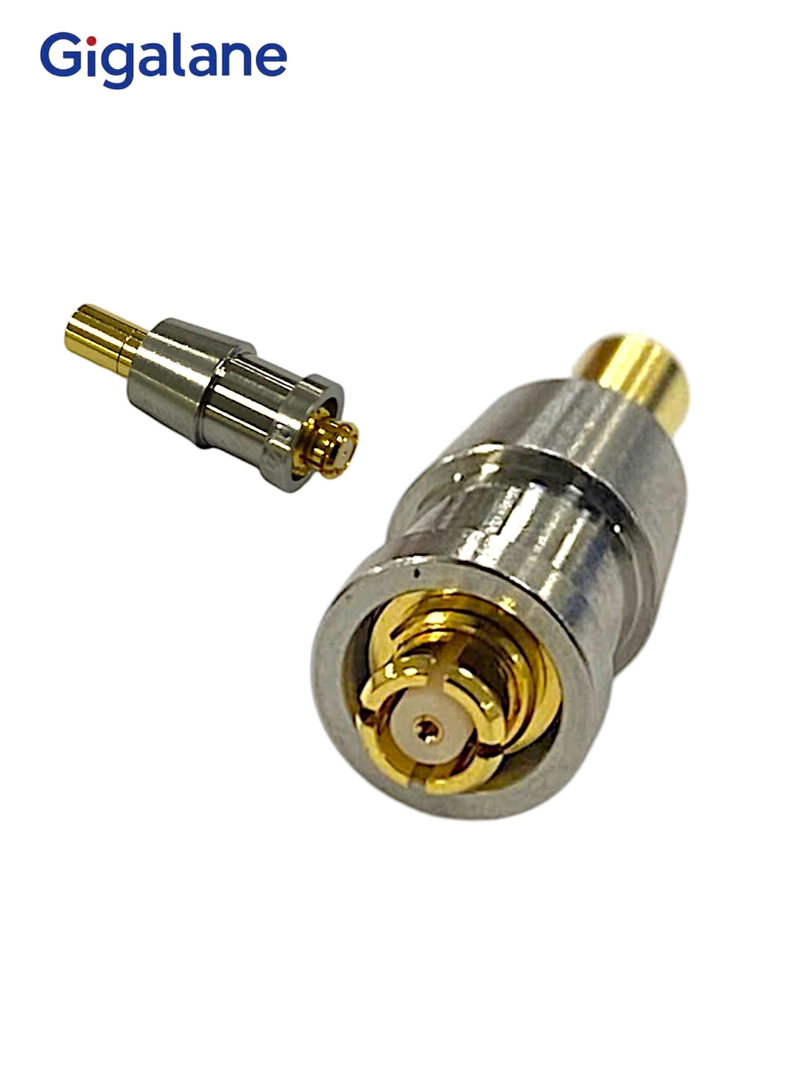

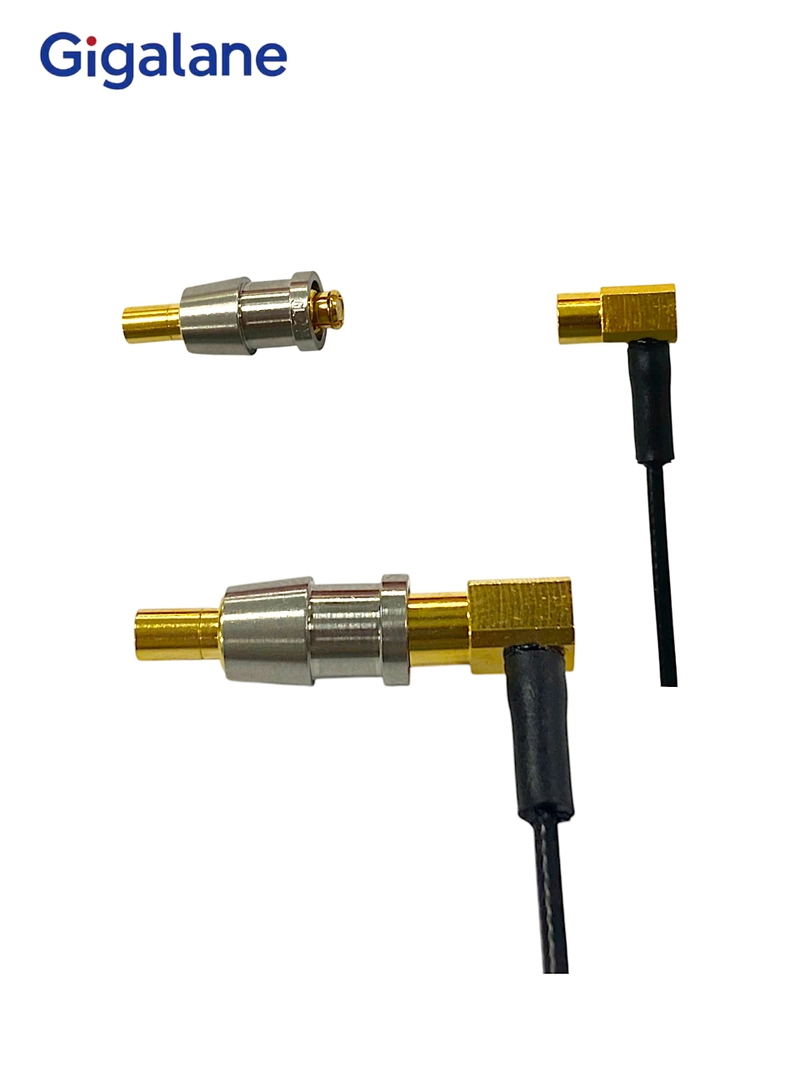

Low Loss RF Test Cable With SMP(M) R/A And SMA (F) ST Connectors On Both End. Comes With A UCMP To SMP(F) Adapter, Allowing Easy Connection Expansion In Your Test Setup.

产品详情

RF Test Cable - Model G04RCC7 : Reliable Connection for Precision Testing. G04RCC7 is a high-performance RF test cable developed by Gigalane, designed for use in lab measurements and production line testing. Featuring an SMP Male Right Angle and SMA Female Straight connector, it offers excellent flexibility and space effciency in compact test environments. Engineered with high quality materials and gold plated connectors for durability and corrosion resistance, the cable supports frequencies up to 3 Ghz,with VSWR (R/L) : 1.35 : 1 (-16.5dB) and insertion loss as low 0.23 - 0.39 dB across key frequency bands ( 0.8- 2.7 GHz). Its compact 105mm length makes it ideal for precise, space - constrained testing setups. Comes with a UCMP to SMP(F) Adapter, allowing easy connection expansion in your test setup.
