Flat Bed Machine Tools For High Speed Turning Of Workpieces

TAIZHOU JUXING INTELLIGENT EQUIPMENT CO.,LTD

产品详情

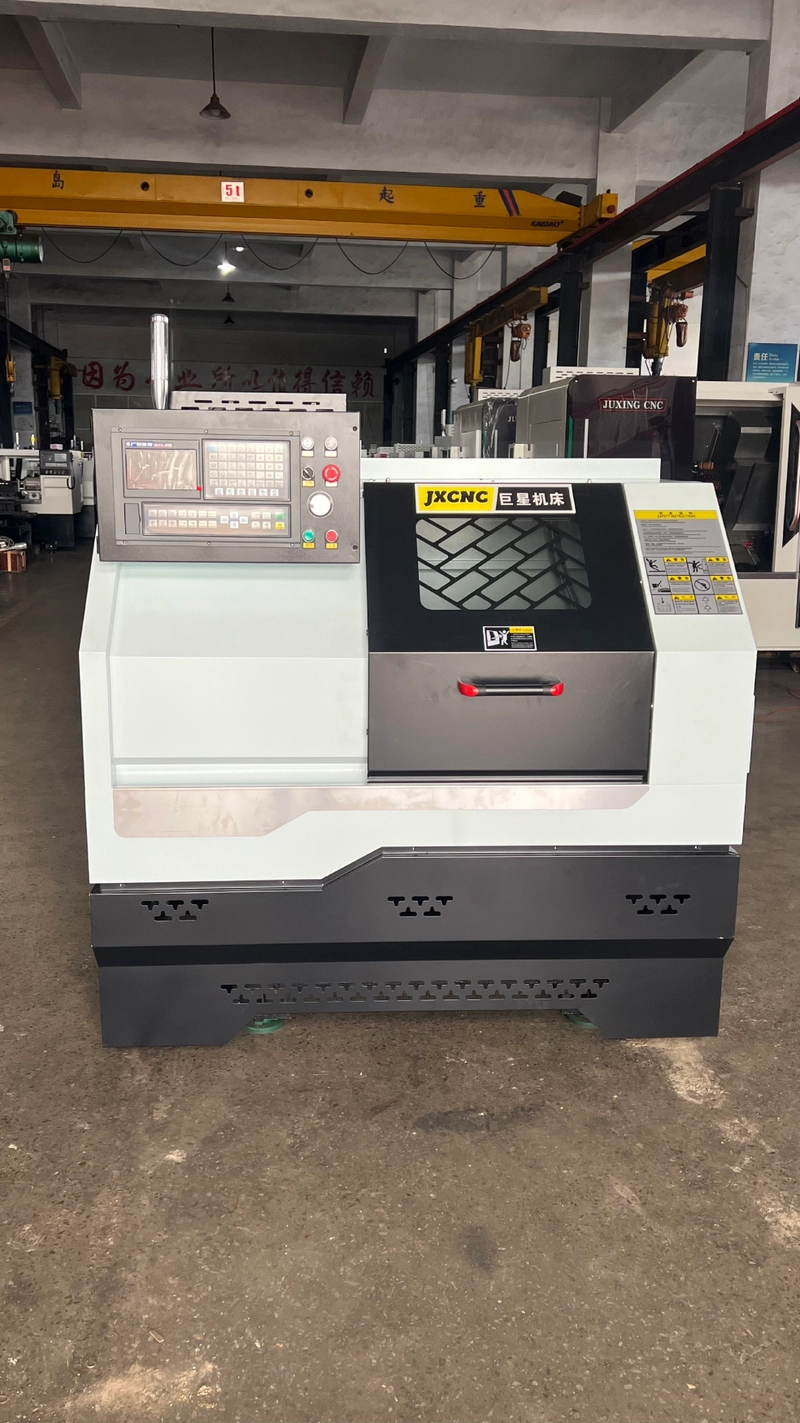

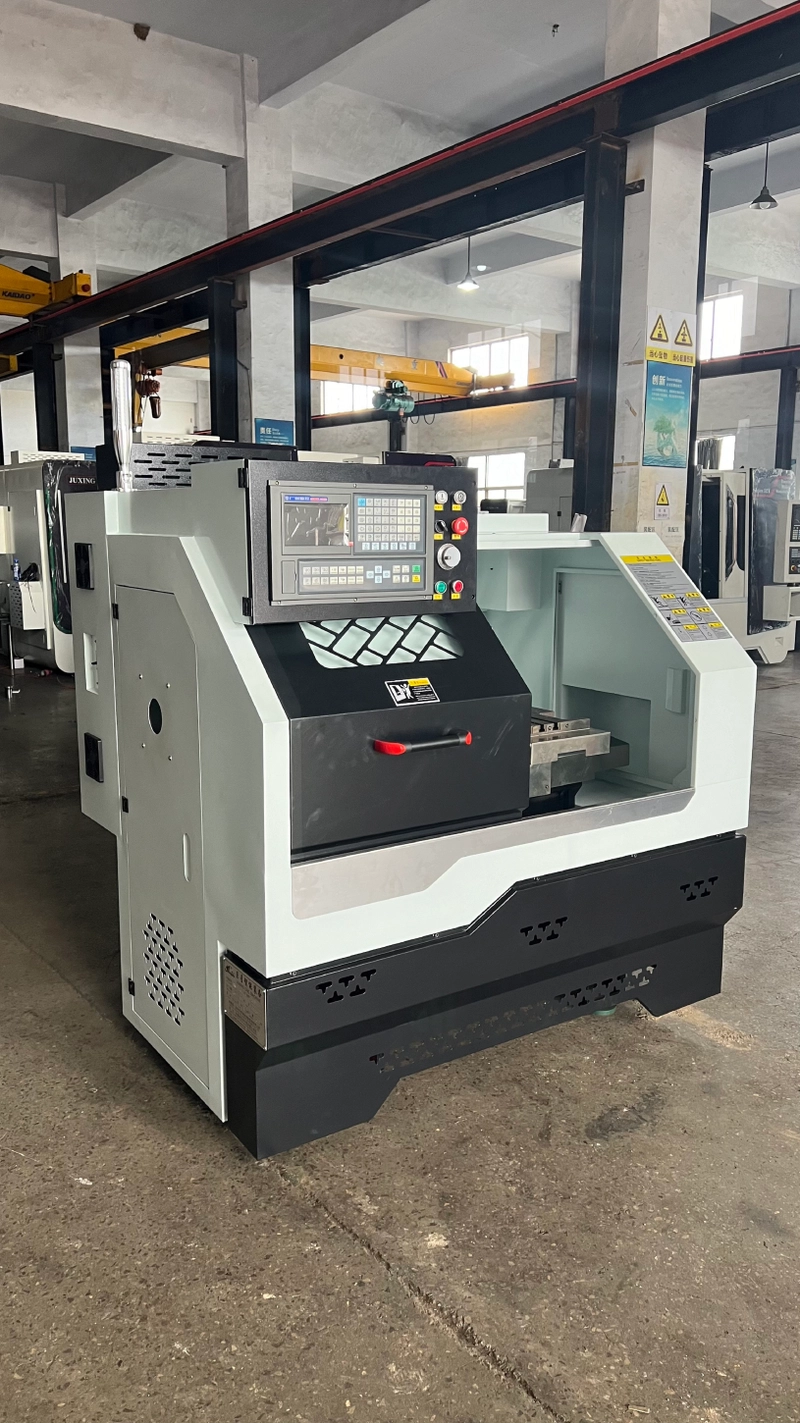

1. JX0640 is a small flat bed line rail CNC lathe, mainly processing copper, aluminum, plastic free cutting steel, 2. liear guide rail configuration make fast feed speed, improve processing efficiency, The guide rail has good wear resistance and extend the service life of the machine 3. The guide rail is divided into two parts: slide rail and slide block. if slide bolck is weard ,it can be replaced directly , so as to ensure the machining accuracy of the machine. 4. This machine install gang tool carrier so to shorten the tool change time and improve the processing efficiency.

产品产地 中国
生产能力 100 套 / 每月
Brandjuxing cnc

规格

Model

CJK0640 FLAT BED CNC LATHE

Max.swing diam over bed

360mm

Max.swing diam over slide

140mm

X/Z fast moving speed

16m/min

Spindle end runout

0.003mm

Spindle nose type

A2-5

Spindle hole diameter

49mm

Drawn pipe hole diam

40mm

Main motor power

3.7kw

Net dimension

1650*1400*1600mm

Net weight

1000kg

样品信息

最低订购量 1 set
样品价格 $6888 / set

装运港

中国

Shanghai Port
